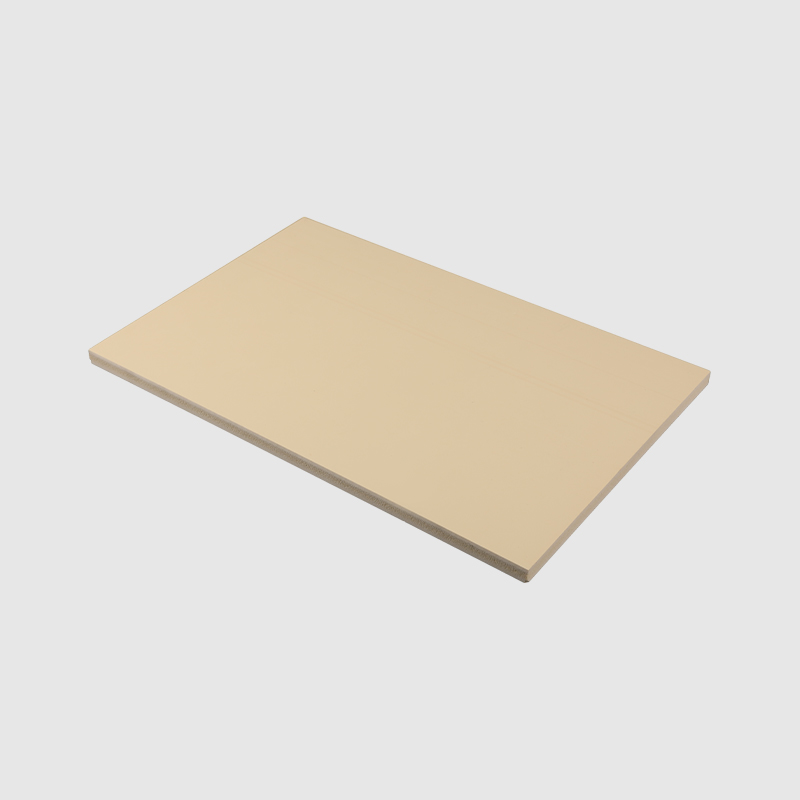

Light Yellow Pvc Foam Board High-Grade Plastic Sheets
Light Yellow Pvc Foam Board High-Grade Plastic Sheets

Light Yellow Pvc Foam Board High-Grade Plastic Sheets

Light yellow PVC foam sheets can be used in signage, advertising displays, interior decoration and architectural applications. Its smooth and uniform surface is easy to print, spray or laminate, while the bright light yellow hue adds a sense of professionalism and beauty. Our PVC foam sheets are environmentally friendly, flame retardant, chemical resistant and weather resistant.
Get A Quote
PREV：12mm white embossed board 3d pvc board wood pattern pvc sheetNEXT：PVC Foam Sheets PVC Celuka Foam Board
  • Parameter
  • Contact Us
  • light yellow · high-grade surface · custom colors available
    Light Yellow PVC Foam Board
    High-Grade Plastic Sheets
    0.45-0.8
    g/cm³
    density range
    1-20
    mm
    thickness (customizable)
    1220x2440
    mm
    standard size
    -20 to 60
    °C
    working temperature

    The light yellow PVC foam board combines aesthetic appeal with structural performance across thicknesses from 1mm to 20mm. The density range of 0.45 to 0.8 g/cm³ provides flexibility between lightweight display panels and denser sheets for load-bearing furniture components. The integral light yellow pigmentation ensures consistent color throughout the cross-section, eliminating surface coating requirements. With a working temperature range of -20°C to 60°C, these high-grade plastic sheets maintain dimensional stability across diverse environmental conditions.

    material advantages
    ▸
    wide density spectrum
    Selectable density from 0.45 to 0.8 g/cm³ allows matching of weight, rigidity, and machining characteristics to specific project requirements.
    ▸
    extended thickness range
    Customizable from 1mm flexible sheets to 20mm rigid panels, accommodating applications from thin signage to structural furniture components.
    ▸
    thermal resilience
    Operational stability from -20°C to 60°C ensures performance in cold storage facilities, outdoor signage, and temperature-varied manufacturing environments.
    ▸
    integral light yellow color
    Pigment distribution throughout the foam matrix means cut edges, routed profiles, and drilled holes maintain the same light yellow tone without exposing contrasting substrate.
    technical specifications
    product designation Light yellow PVC foam board · high-grade plastic sheet
    density 0.45 - 0.8 g/cm³ (selectable per application)
    thickness 1mm to 20mm (±0.2 to ±0.4mm tolerance)
    sheet dimensions 1220 x 2440 mm (standard) · custom sizes on request
    working temperature -20°C to +60°C (operational range)
    surface finish Smooth, matte, printable without primer
    water absorption ≤ 0.6% (24h immersion, ASTM D570)
    flame retardancy UL94 HB (self-extinguishing) · B1 available
    application domains
    point-of-purchase displays
    cabinet interiors
    exhibition booths
    signage lettering
    wall cladding
    model making
    retail fixtures
    packaging inserts
    The light yellow coloration provides high visibility for retail displays while maintaining compatibility with UV printing, screen printing, and adhesive vinyl applications.
    processing guidelines
    ✁
    cutting & routing
    Carbide-tipped circular blades (10-14 TPI). CNC routing: single-flute bits, 12,000-18,000 RPM. Laser cutting compatible for thicknesses up to 8mm.
    ⎙
    printing & laminating
    UV flatbed, solvent, screen printing. Accepts self-adhesive vinyl films and wood veneers. No primer required for most applications.
    ⚙
    adhesive bonding
    Solvent-based PVC cements, acrylic foam tapes, polyurethane adhesives. For permanent bonds, use specialized PVC weld adhesive.
    ⎔
    edge finishing
    Sand with 180-240 grit paper. Apply PVC edge banding with hot melt adhesive for exposed edges on furniture components.
    technical Q&A
    What density is recommended for 3mm light yellow sheets?
    For 3mm thickness in signage applications, density 0.55-0.65 g/cm³ provides optimal balance of rigidity and printability. Lower density (0.45-0.50) for flexible banners; higher density (0.70-0.80) for structural components requiring extra stiffness.
    Is the light yellow color UV stable for outdoor signage?
    Standard grade offers 6-9 months outdoor exposure before noticeable fading. For extended outdoor use (1-2 years), request UV-stabilized formulation. Light yellow pigment generally fades slower than bright red or orange tones.
    Can the board be thermoformed?
    Limited thermoforming possible at 120-150°C for simple curves on 1-5mm thickness. Sharp bends or deep drawing may collapse the foam structure. For complex 3D shapes, use thinner grades (1-3mm) with slower heating cycles.
    Is the material recyclable?
    Yes. PVC foam board is fully recyclable under resin code 3. Production scrap can be reground and reintroduced up to 15% in non-critical layers. RoHS compliant with no lead-based stabilizers.
    light yellow PVC foam board · 1-20mm · 1220x2440mm density 0.45-0.8 g/cm³ · working temp -20°C to 60°C
