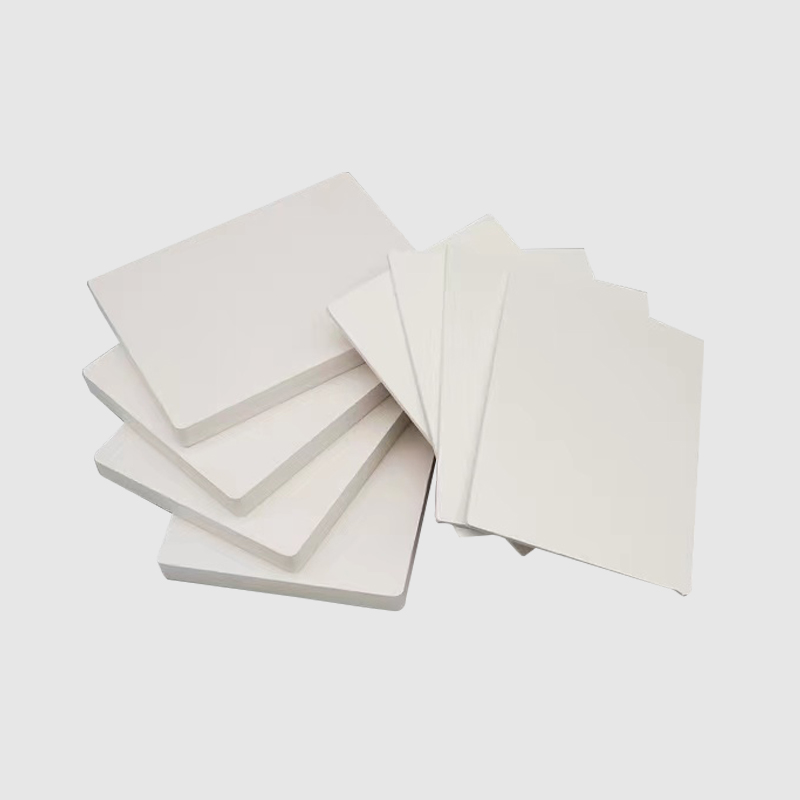

Furniture Material 4x8ft Rigid Plastic PVC Board Wall Panel Decorate PVC Foam Board Laminate Board
Furniture Material 4x8ft Rigid Plastic PVC Board Wall Panel Decorate PVC Foam Board Laminate Board

Furniture Material 4x8ft Rigid Plastic PVC Board Wall Panel Decorate PVC Foam Board Laminate Board

Furniture Materials 4x8 ft. Rigid Plastic PVC Sheet Wall Panels are durable, versatile, and designed for furniture applications. Sheet sizes are 4x8 ft., providing ample surface area. Rigid Plastic PVC material offers excellent strength and impact resistance for long-term use in a variety of furniture projects. Not only are these panels structurally sound, they also feature a laminate finish. Laminates have a smooth, polished surface that is easy to clean and maintain.
Get A Quote
PREV：Board foam pvc expansion sheets mounting foamboard signage boardNEXT：High density rigid white plastic 4x8ft 20mmplastic forex celuka free pvc foam sheet board
  • Parameter
  • Contact Us
  • 4x8 ft
    1220x2440 mm
    white · color optional
    Furniture Material 4x8ft Rigid Plastic PVC Board
    Wall Panel Decorate · PVC Foam Board · Laminate Board
    5-30
    mm
    thickness customizable
    0.4-0.9
    g/cm³
    density range
    4x8
    ft
    standard sheet

    This rigid plastic PVC board combines structural integrity with decorative versatility for furniture manufacturing and wall panel applications. Available in thicknesses from 5mm to 30mm with selectable density between 0.4 and 0.9 g/cm³, the material accommodates lightweight decorative panels to heavy-duty furniture components. The standard 4x8 foot sheet size (1220x2440mm) integrates with standard fabrication equipment, while the white base surface accepts laminates, paints, and direct printing. Optional custom colors are available for integrated pigmentation throughout the board cross-section.

    core properties
    R
    rigid construction
    High-density formulation from 0.4 to 0.9 g/cm³ provides flexural strength suitable for shelving, cabinetry, and wall-mounted panels without sagging.
    L
    laminate ready surface
    Smooth, non-porous surface accepts decorative laminates, wood veneers, and high-pressure laminates (HPL) using standard contact adhesives.
    W
    water resistant core
    Closed-cell structure prevents moisture absorption, making it suitable for bathroom vanities, kitchen cabinets, and laundry room panels.
    C
    color optional
    Available in white standard finish or custom integral colors. Through-color pigmentation ensures consistent appearance on cut edges.
    physical specifications
    sheet size1220 x 2440 mm (4ft x 8ft)
    thickness range5mm to 30mm (±0.3mm tolerance)
    density0.4 - 0.9 g/cm³ (selectable)
    colorwhite standard · custom colors optional
    surface finishsmooth, matte, laminate-ready
    performance data
    water absorption≤ 0.6% (ASTM D570)
    flexural strength10-25 MPa (dependent on density)
    working temperature-20°C to +60°C
    fire ratingUL94 HB · Class B1 optional
    screw retention≥ 600 N (12mm board, 0.65 g/cm³)
    furniture & decoration applications
    kitchen cabinet carcasses
    bathroom vanities
    wardrobe systems
    wall cladding panels
    office furniture
    retail display units
    laminate substrates
    partition walls
    The 4x8ft rigid PVC board serves as a direct replacement for plywood and MDF in moisture-prone environments, offering equivalent machinability with superior water resistance.
    fabrication & installation
    cutting
    Tungsten carbide-tipped circular saw blades (10-12 TPI). For thicknesses above 15mm, score-and-snap method or panel saw recommended.
    edge banding
    Apply 1mm or 2mm PVC edge banding with hot melt adhesive. Match edge band color to board or decorative laminate.
    lamination
    Use contact cement or pressure-sensitive adhesives. Ensure surface is clean and dust-free. Apply even pressure for 24 hours.
    fastening
    Pre-drill holes for screws. Use coarse-thread screws designed for PVC. Maintain 20mm minimum distance from sheet edges.
    frequently asked questions
    What thickness is recommended for cabinet doors?
    For framed cabinet doors, 15mm to 18mm thickness with density 0.6-0.7 g/cm³ provides adequate rigidity. For frameless (European style) cabinets, 18mm is standard. Thinner boards (12mm) are suitable for back panels and drawer bottoms.
    Can this board be laminated with HPL?
    Yes. The smooth PVC surface accepts high-pressure laminate (HPL) using contact cement or specialized PVC adhesives. Surface preparation requires cleaning with isopropyl alcohol to remove any manufacturing residue.
    Is the material suitable for outdoor furniture?
    Standard grade is suitable for covered outdoor areas (porches, patios). For direct sunlight and rain exposure, request UV-stabilized formulation. Darker colors require UV protection more than white.
    How does this compare to plywood for furniture?
    PVC foam board offers superior moisture resistance, lighter weight (30-50% lighter than plywood), and eliminates concerns about warping or delamination. However, it has lower screw holding strength than hardwood plywood and requires specific fasteners.
    What density should I choose for wall panels?
    For vertical wall cladding, density 0.45-0.55 g/cm³ is sufficient. For areas subject to impact (hallways, commercial spaces), select 0.60-0.75 g/cm³ for added durability.
    4x8ft rigid PVC board · furniture grade · 5-30mm thickness density 0.4-0.9 g/cm³ · laminate ready · white or custom color
