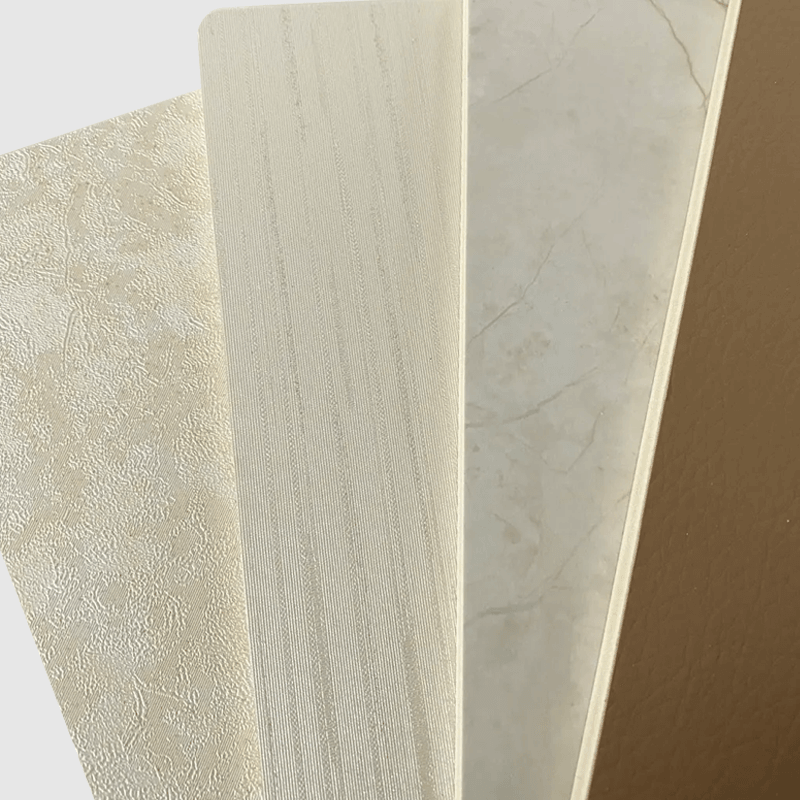

5-10mm wpc wall foam board plastic decoration panel
5-10mm wpc wall foam board plastic decoration panel

5-10mm wpc wall foam board plastic decoration panel

The 5-10mm WPC (Wood Plastic Composite) wall foam board is an engineered interior decoration material composed of a calibrated blend of polyvinyl chloride (PVC) resin and wood fiber. This composite is manufactured through a high-pressure extrusion process, resulting in a cellular structure that combines the tensile strength of wood with the moisture resistance of thermoplastic polymers. The 5mm to 10mm thickness range is specifically designed for vertical wall applications, providing a rigid substrate that masks surface irregularities in the underlying masonry or studwork. These panels feature a high-density skin that is resistant to mechanical impact and chemical cleaning agents. As a formaldehyde-free material, it serves as a compliant solution for indoor air quality standards in residential and commercial sectors. The panels are compatible with various surface treatments, including lamination, painting, and heat transfer printing, facilitating a wide range of aesthetic finishes for modern architectural requirements.
Get A Quote
PREV：No previous articleNEXT：Water proof plastic composite board wall panel fireproof wpc wall foam boards
  • Parameter
  • Contact Us
  • 5-10mm WPC Wall Foam Board Plastic Decoration Panel
    B1 fire rated waterproof wood fiber reinforced low thermal expansion
    5-10
    mm
    thickness range
    0.45-0.65
    g/cm3
    density
    45-50
    D
    shore hardness
    15-20
    MPa
    flexural strength
    ≥700
    N
    screw holding (10mm)
    ◆
    structural stability
    The wood fiber reinforcement reduces the coefficient of linear thermal expansion compared to standard PVC boards, minimizing dimensional changes during temperature fluctuations.
    ◆
    waterproof composition
    The polymer matrix encapsulates the wood fibers, preventing water absorption, rot, and swelling in high-humidity zones.
    ◆
    flame retardancy
    Engineered with inorganic flame retardants, the panels achieve a Class B1 rating, characterized by self-extinguishing properties and low smoke density.
    ◆
    maintenance efficiency
    The non-porous surface prevents deep staining and mold colonization, requiring only standard neutral detergents for decontamination.
    technical characteristics
    thickness range5mm - 10mm (±0.2mm tolerance)
    density0.45 - 0.65 g/cm3
    shore hardness≥ 45-50 D
    flexural strength15 - 20 MPa
    screw holding power≥ 700 N (10mm board)
    application scenarios
    interior wall cladding
    Direct installation on bathroom, kitchen, and basement walls where conventional drywall is prone to moisture damage.
    integrated ceiling systems
    Utilization of 5mm-8mm panels for lightweight, moisture-proof suspended ceilings in commercial corridors.
    modular furniture components
    Fabrication of cabinet back panels, drawer bottoms, and wardrobe partitions.
    public infrastructure decoration
    Wall protection and decorative surfacing in hospitals, schools, and transportation hubs due to its impact resistance.
    handling and storage protocol
    stacking instructions
    Store panels flat on level pallets. Do not store panels in an upright diagonal position for extended periods, as 5-10mm gauges are susceptible to permanent gravity-induced warping.
    environmental conditions
    Keep in a cool, dry warehouse. While waterproof, prolonged exposure to direct UV radiation during storage may lead to surface oxidation and color shifts in untreated boards.
    installation gap
    Allow for a 1.5mm to 2mm expansion joint at the perimeter of the installation to accommodate the natural movement of the building structure.
    machining requirements
    Standard woodworking machinery is applicable. Use tungsten carbide-tipped (TCT) saw blades to ensure clean edge finishes without melting the polymer edges.
    WPC wall panel · 5-10mm · B1 fire rated · waterproof wood fiber reinforced · low thermal expansion
